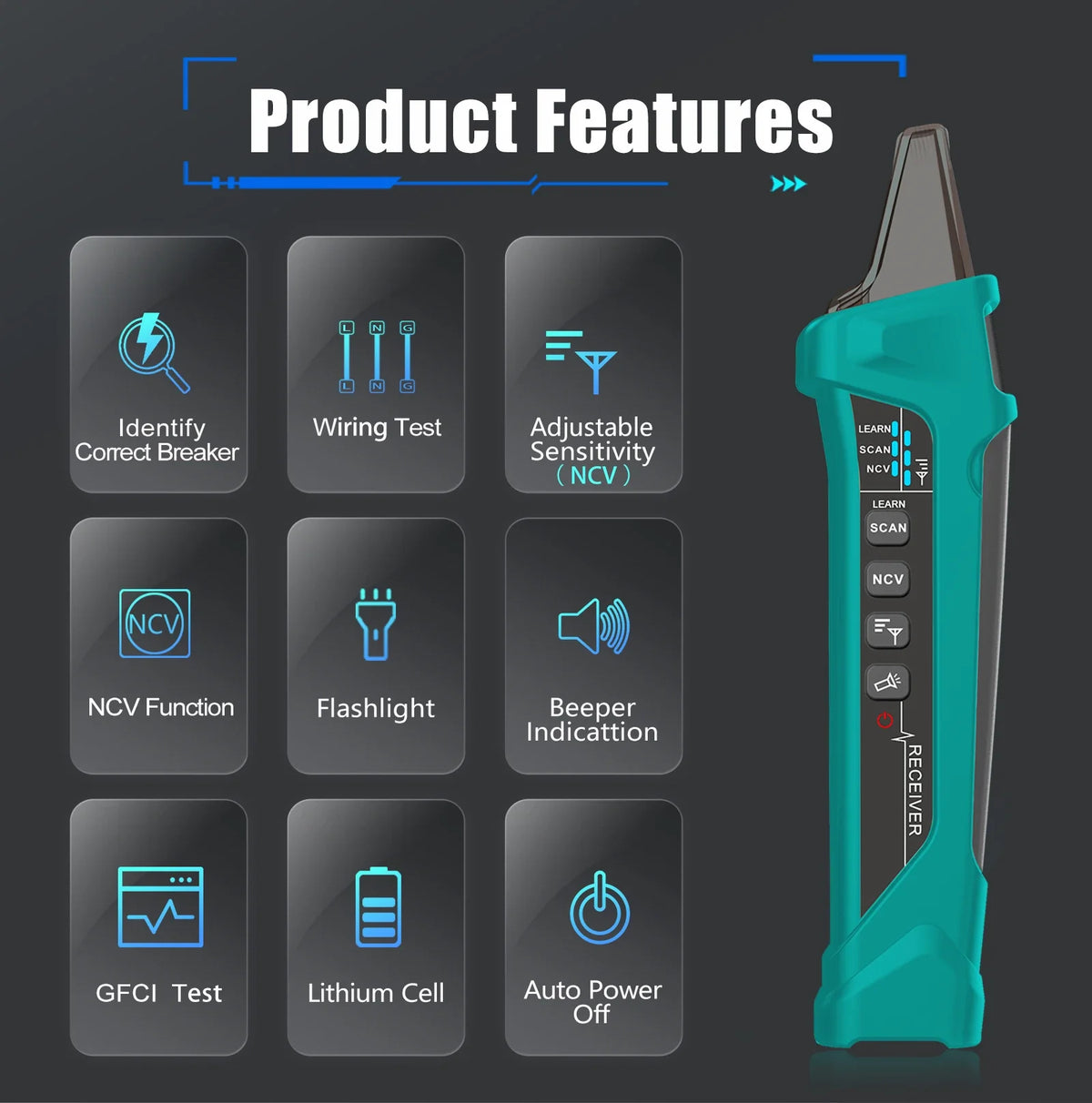

Digital Circuit Breaker Finder

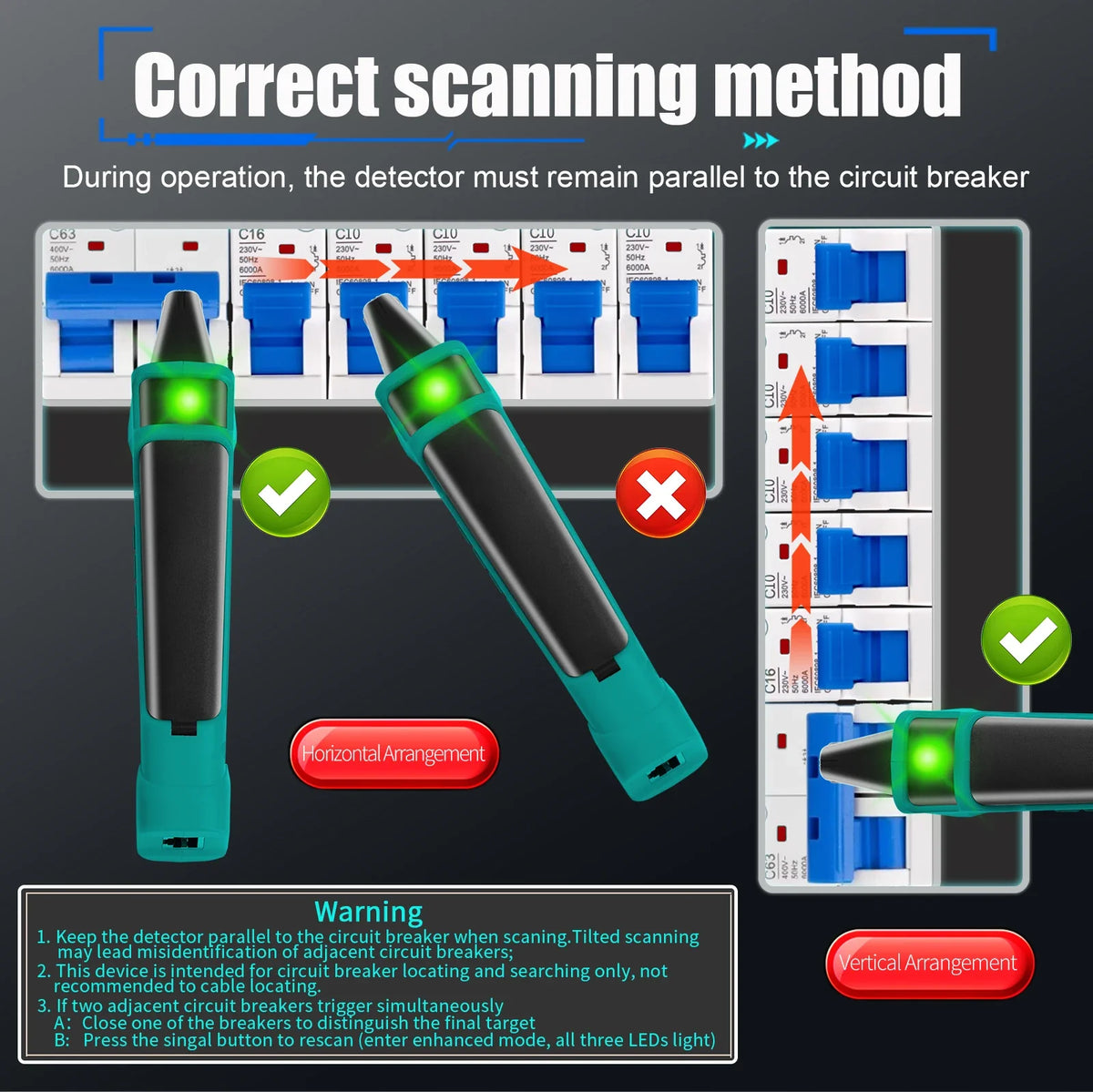

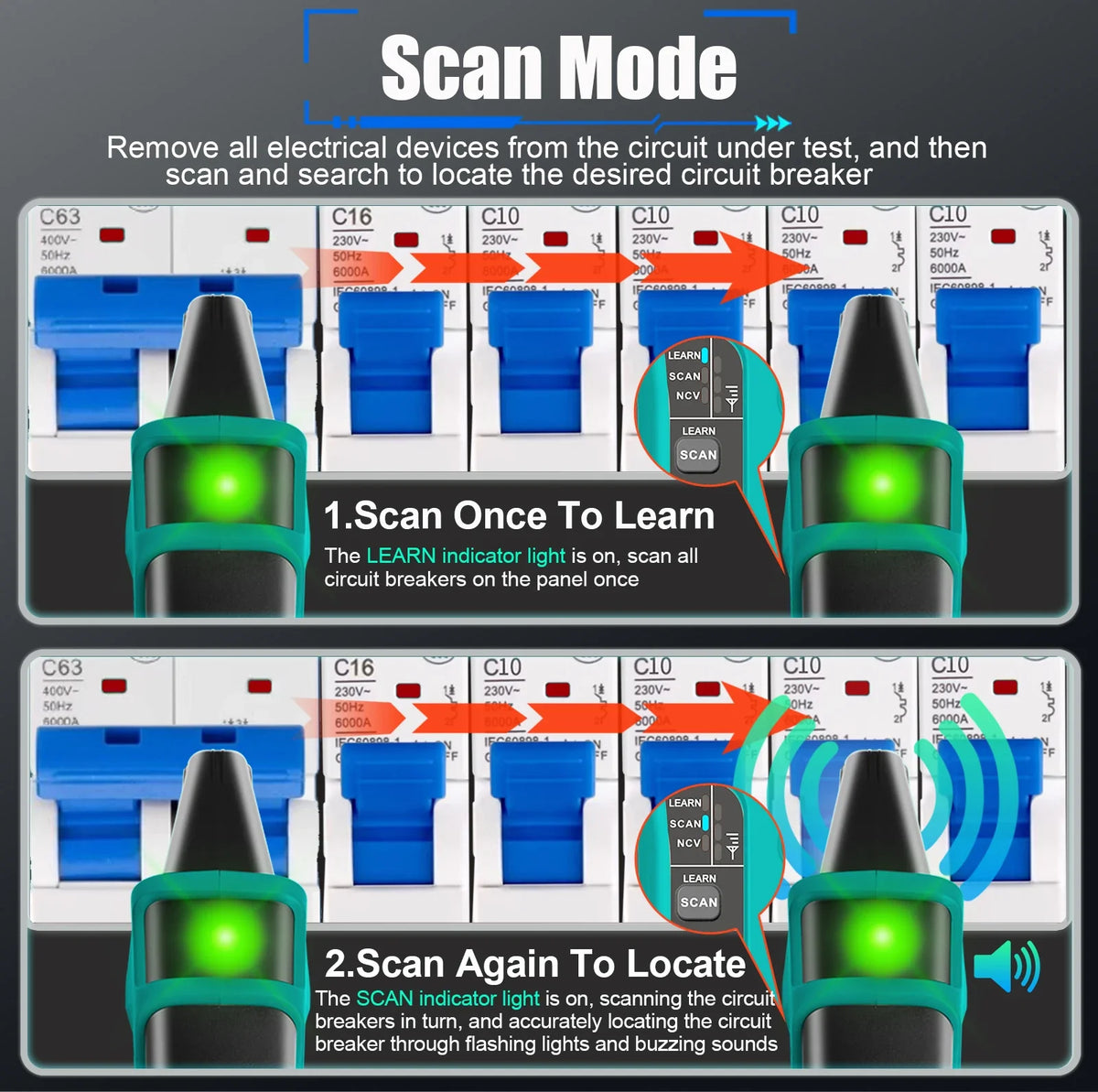

● Identify Correct Breaker, uses AI mode, the receiver scans the breaker panel to quickly locate breakers—suitable for electricians and home repairs.

● Wiring Test, detects and identifies common outlet wiring faults.

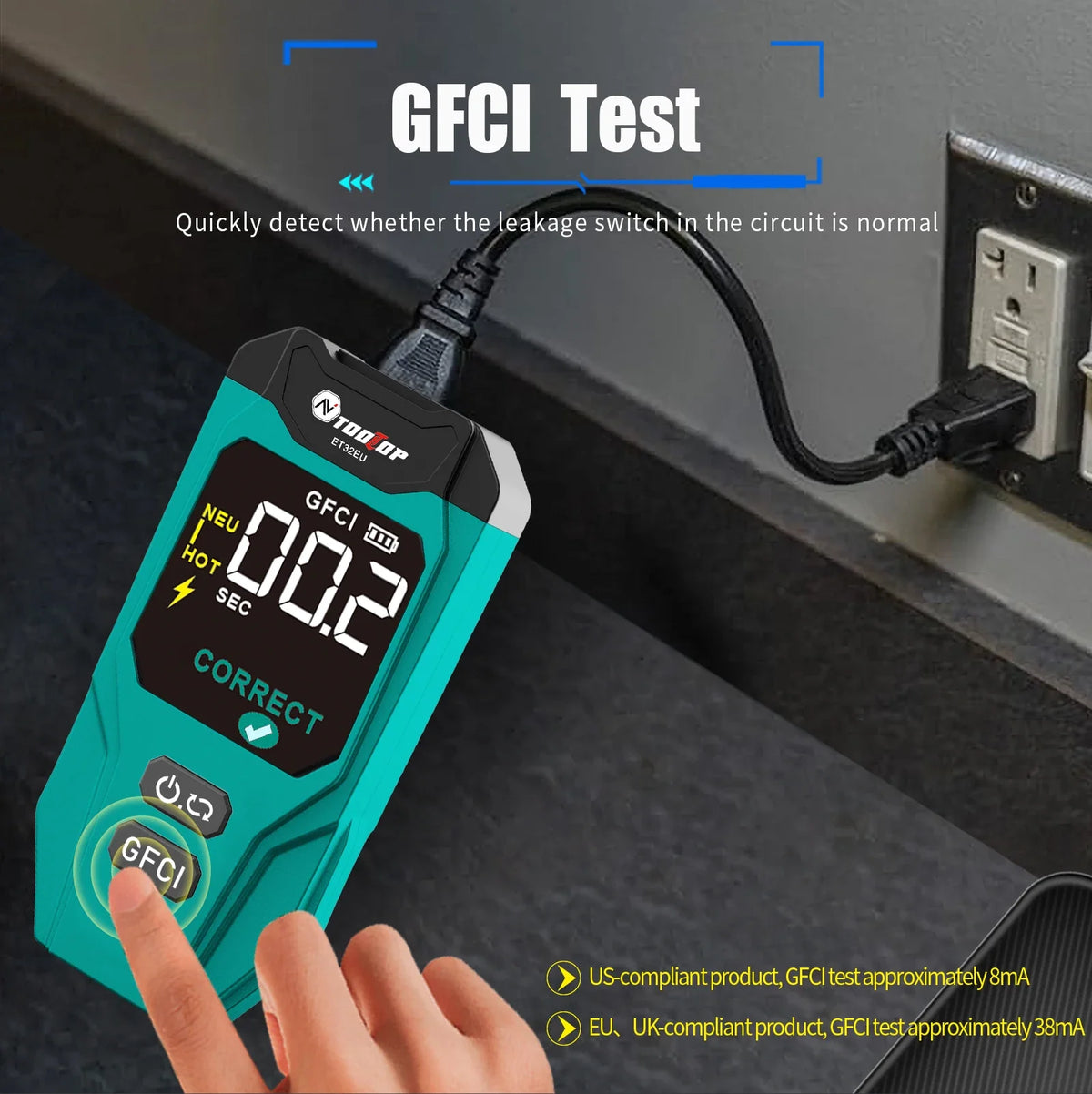

● GFCI outlet Test, displays the trip time of GFCI devices.

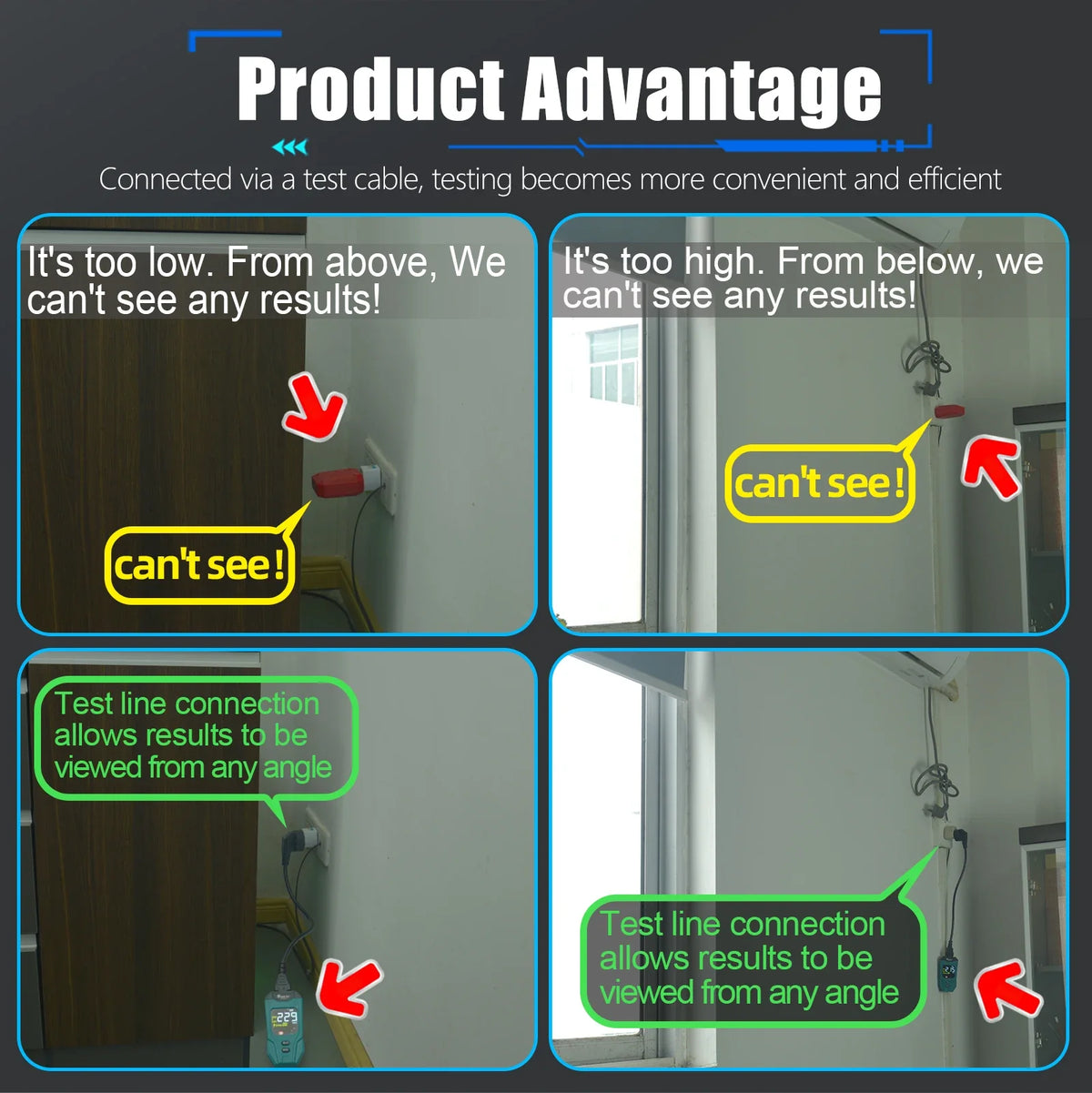

● Outlet extension cable connection design, fits outlet testing in any location.

● Both transmitter and receiver have built-in rechargeable lithium batteries.

Specification :

● Detection Distance: 0~ 3 cm

● GFCI Test: shows GFCI

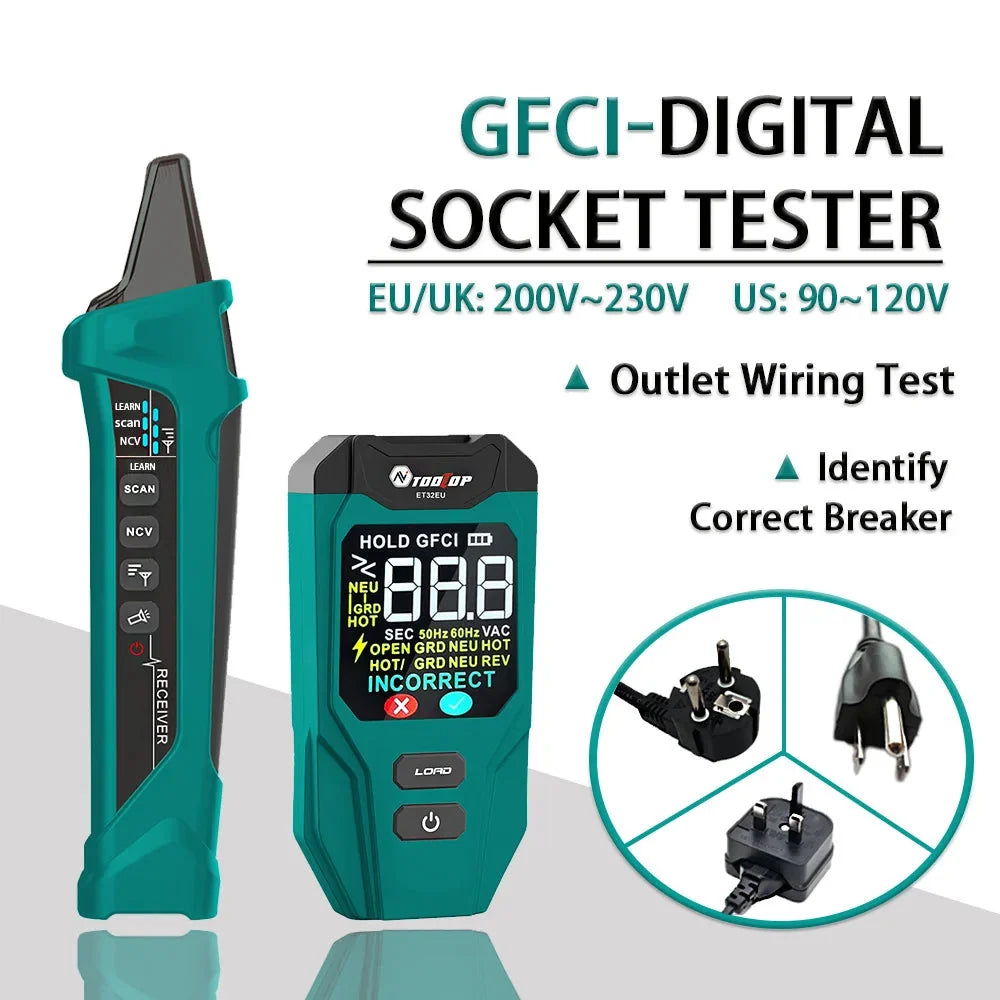

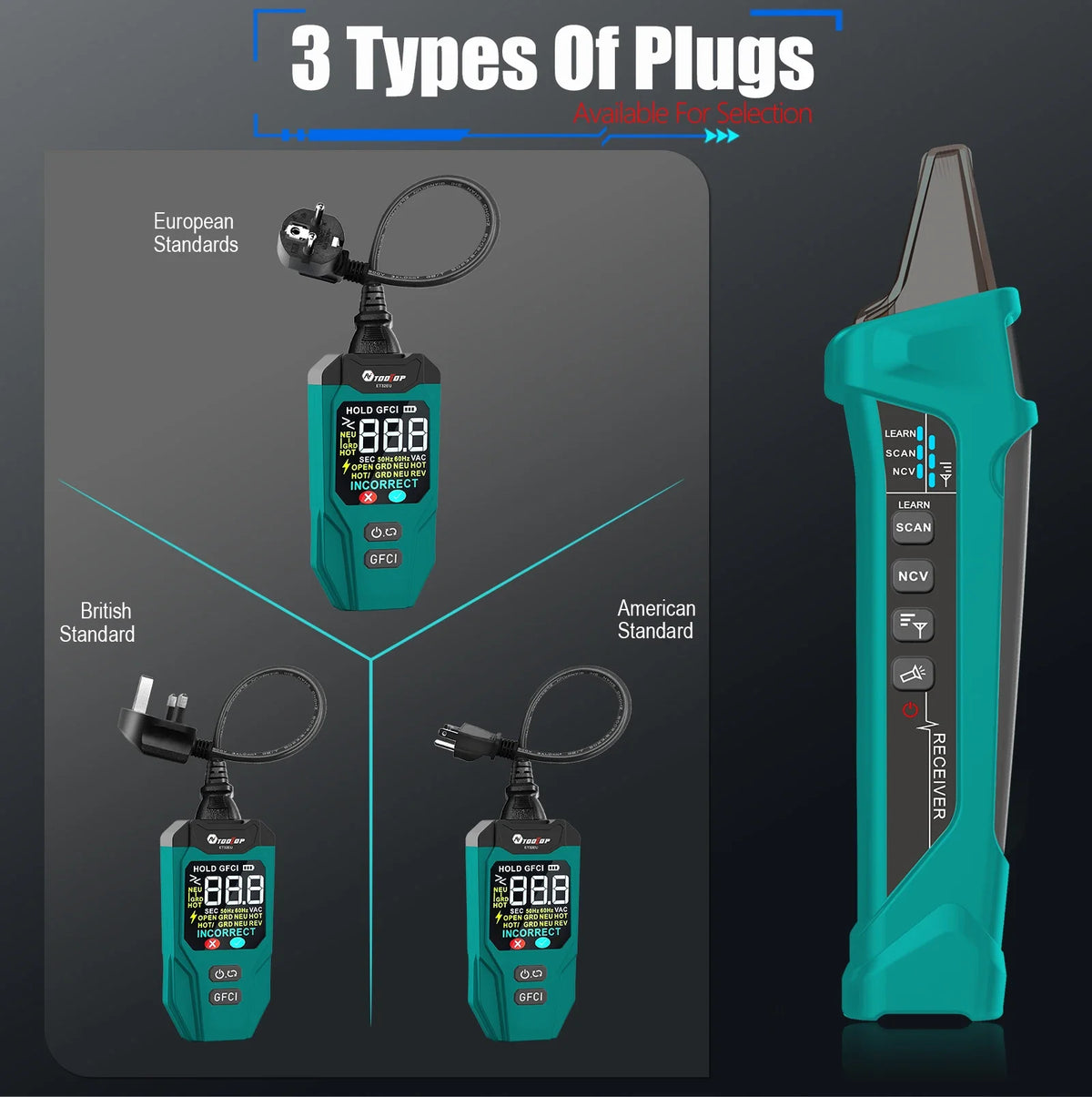

● Socket standards: American, European, or British plugs — selectable

● Operating Voltage: American Plug: 90-120V 50/60Hz ; European/British Plug:200-230V 50/60Hz

● Test current: Approx. 8 mA for US standard, approx. 38 mA for EU/UK standards.

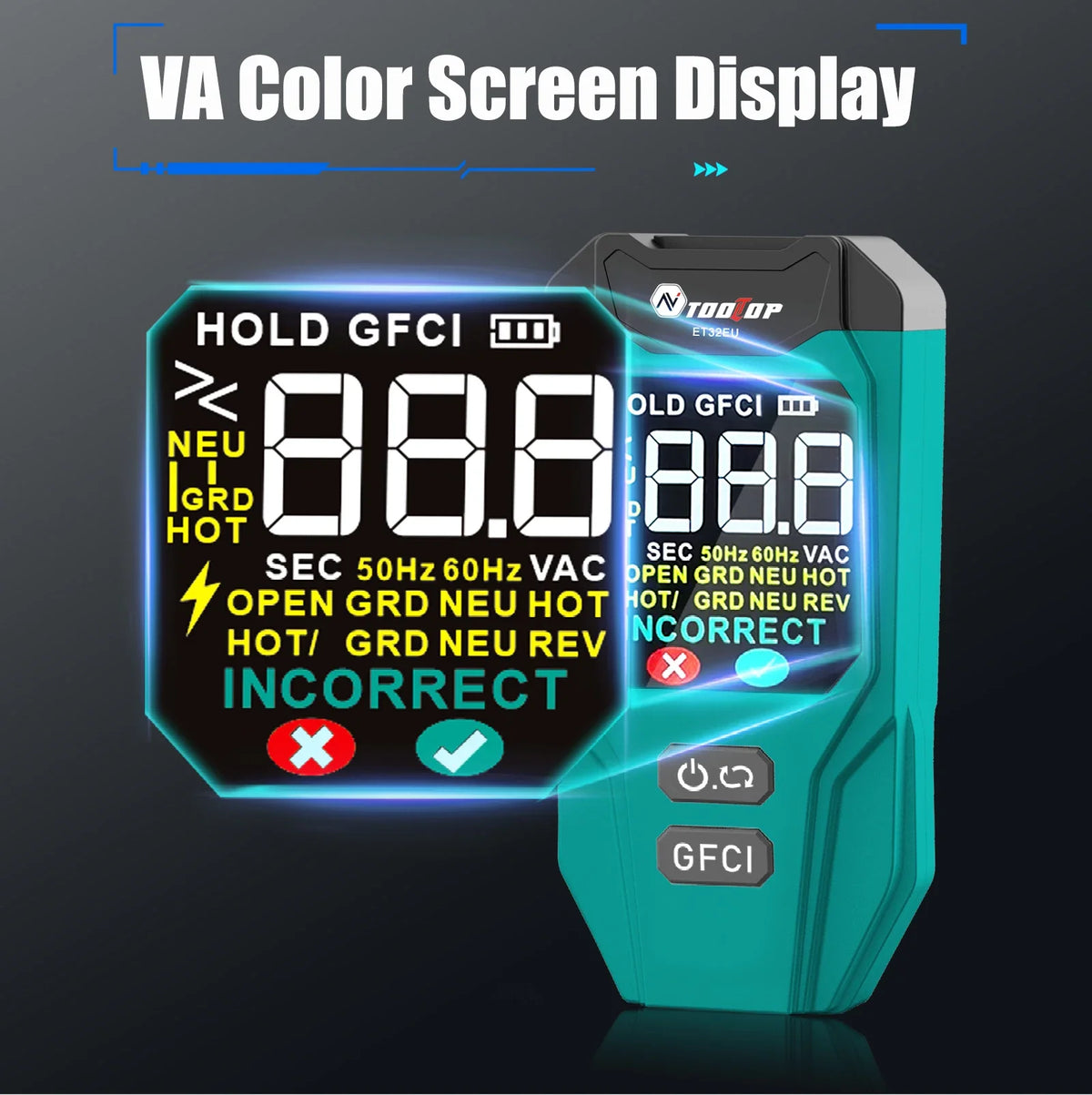

● LCD Display: Color VA Screen

● Line voltage: Hot-to-neutral / Neutral-to-ground voltage

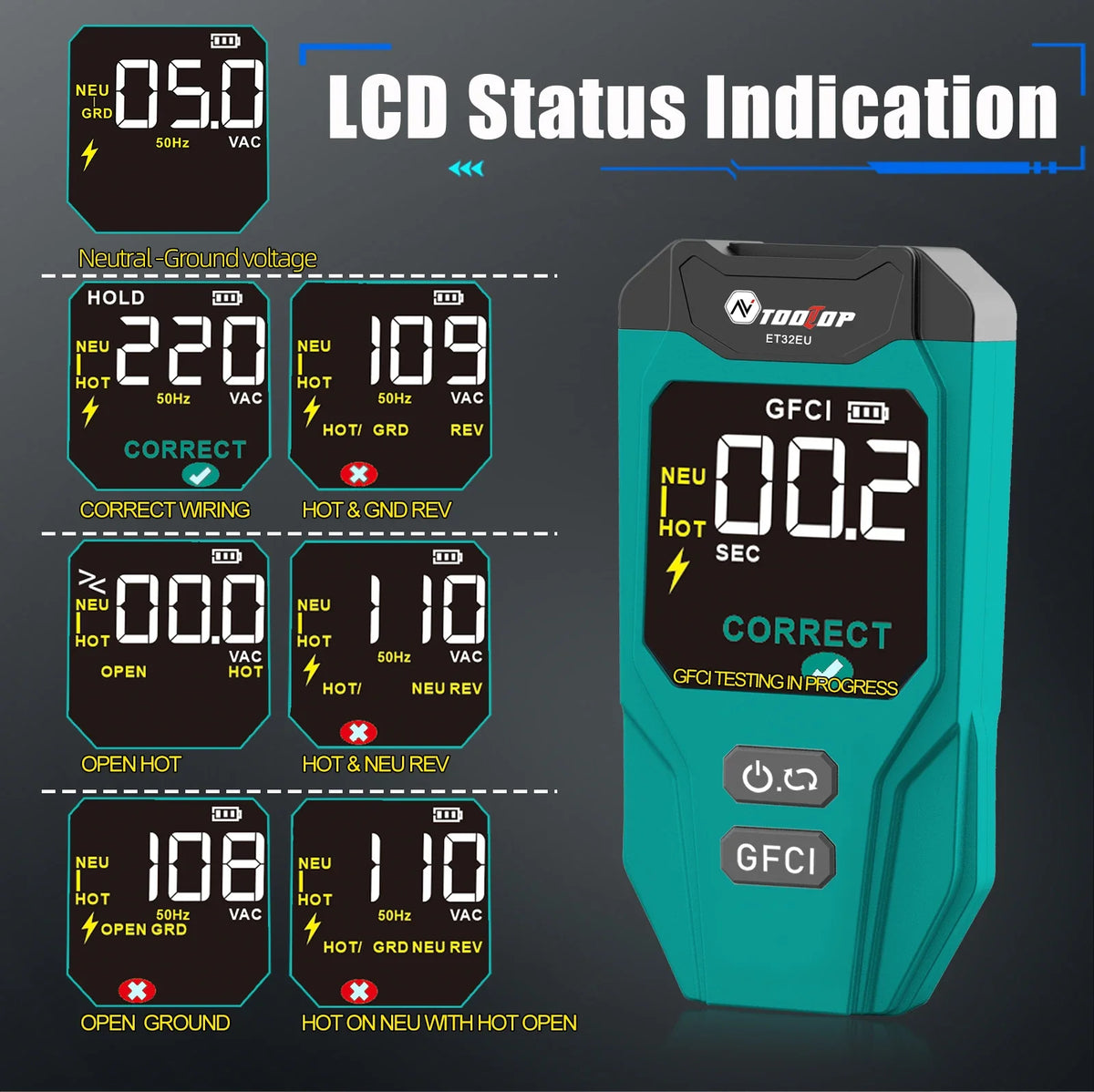

● Line testing: Open Hot/Hot & Neutral Reversed ; Open Ground/Hot & Ground Reversed

● Line detection results: Correct Wiring / Incorrect Wiring

● Leakage switch detection: Learning mode / Standard mode

● Circuit Phase Detection: Correct/Reversed/Missed/Crossed

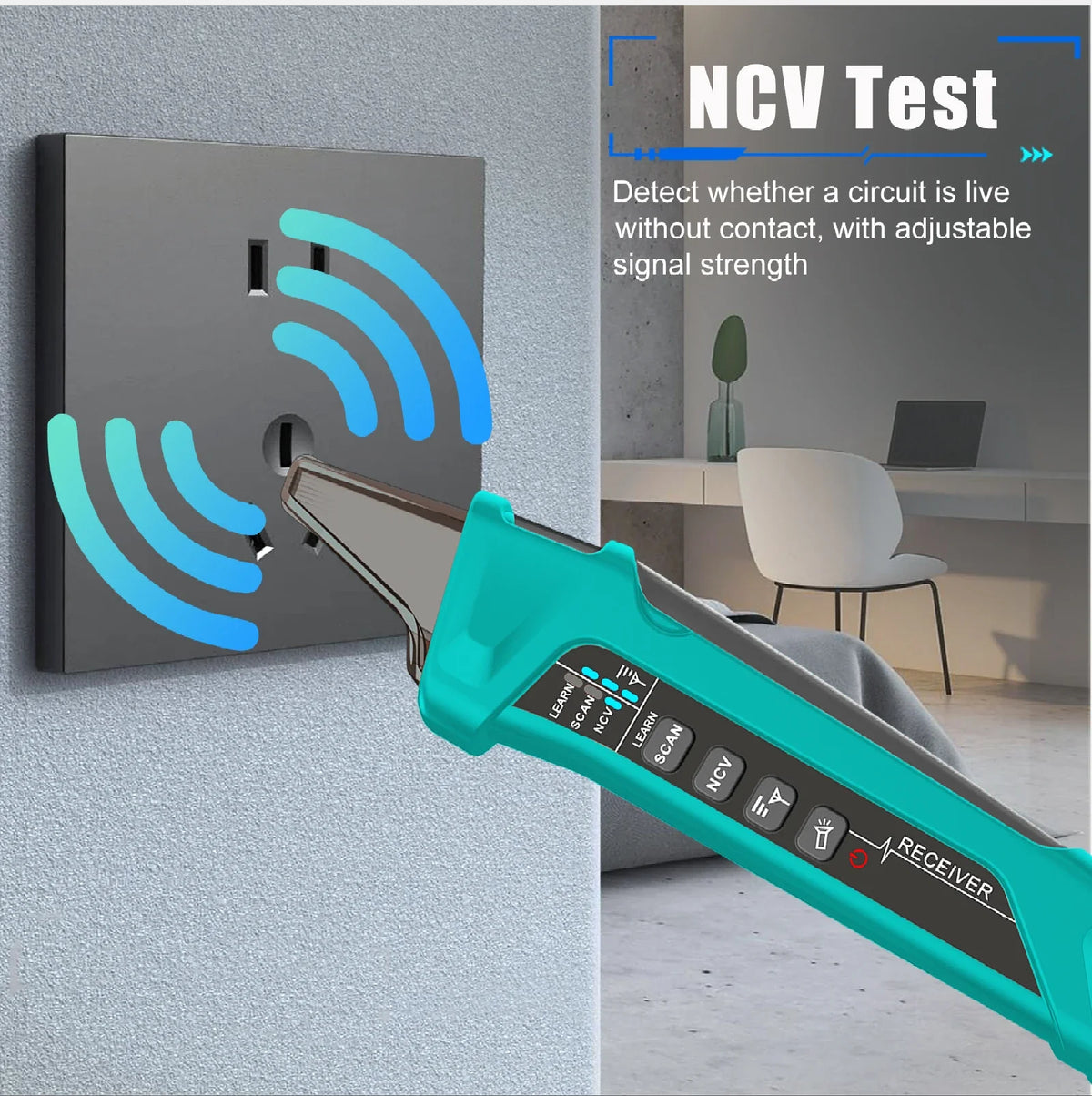

● NCV: AC90V~1000V 50/60Hz

● Battery: 3.7V rechargeable lithium Battery

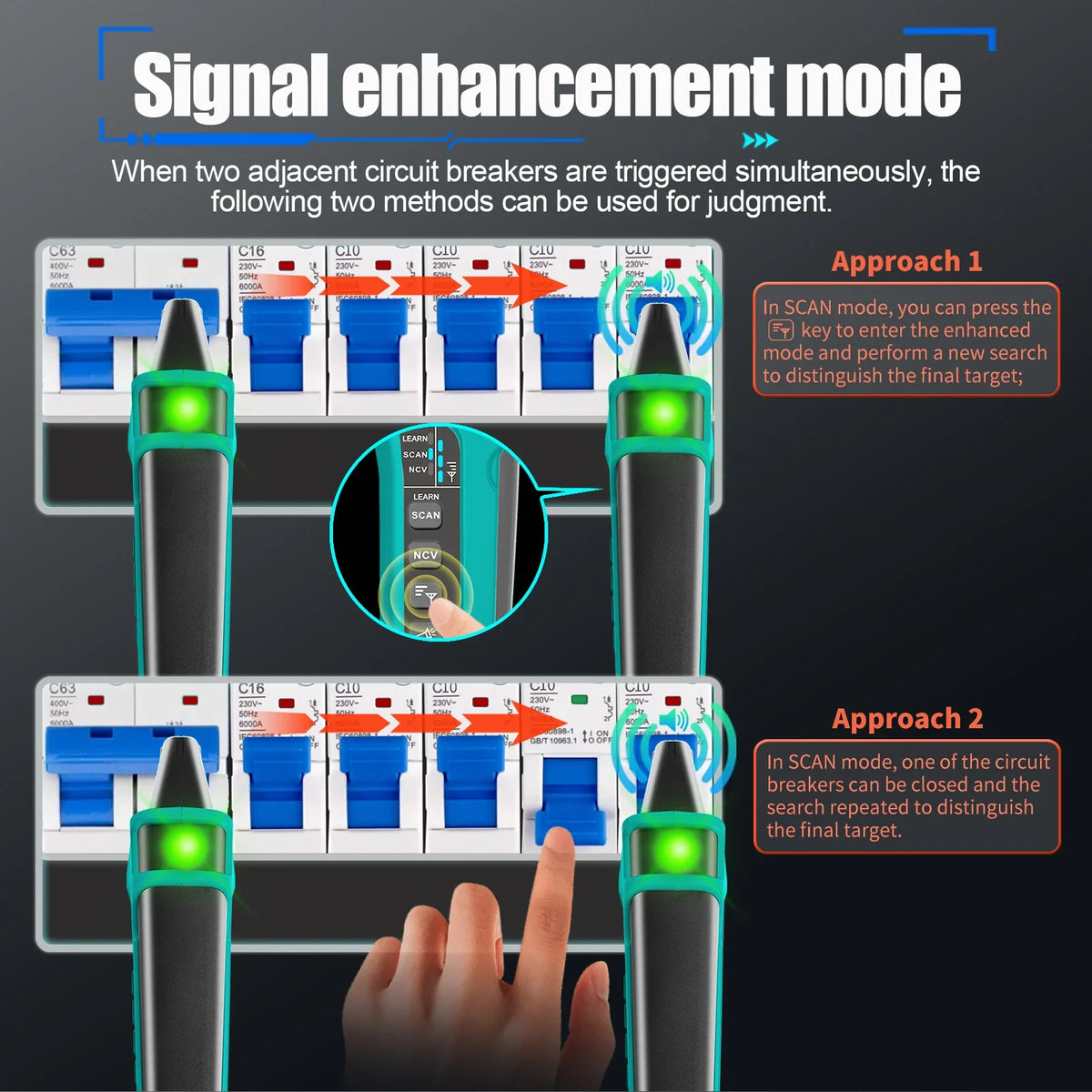

● Adjustable Sensitivity: support

● Flashlight: support

● Low Battery Detection: support

● Auto Power Off : support

● Operating Temp: 0~ 50°c (32°F~122°F)

● Storage Temp: -20~50°c (-4°F ~122°F)

● Dimensions: 245*145*65mm

● Weight: Approximately 570g

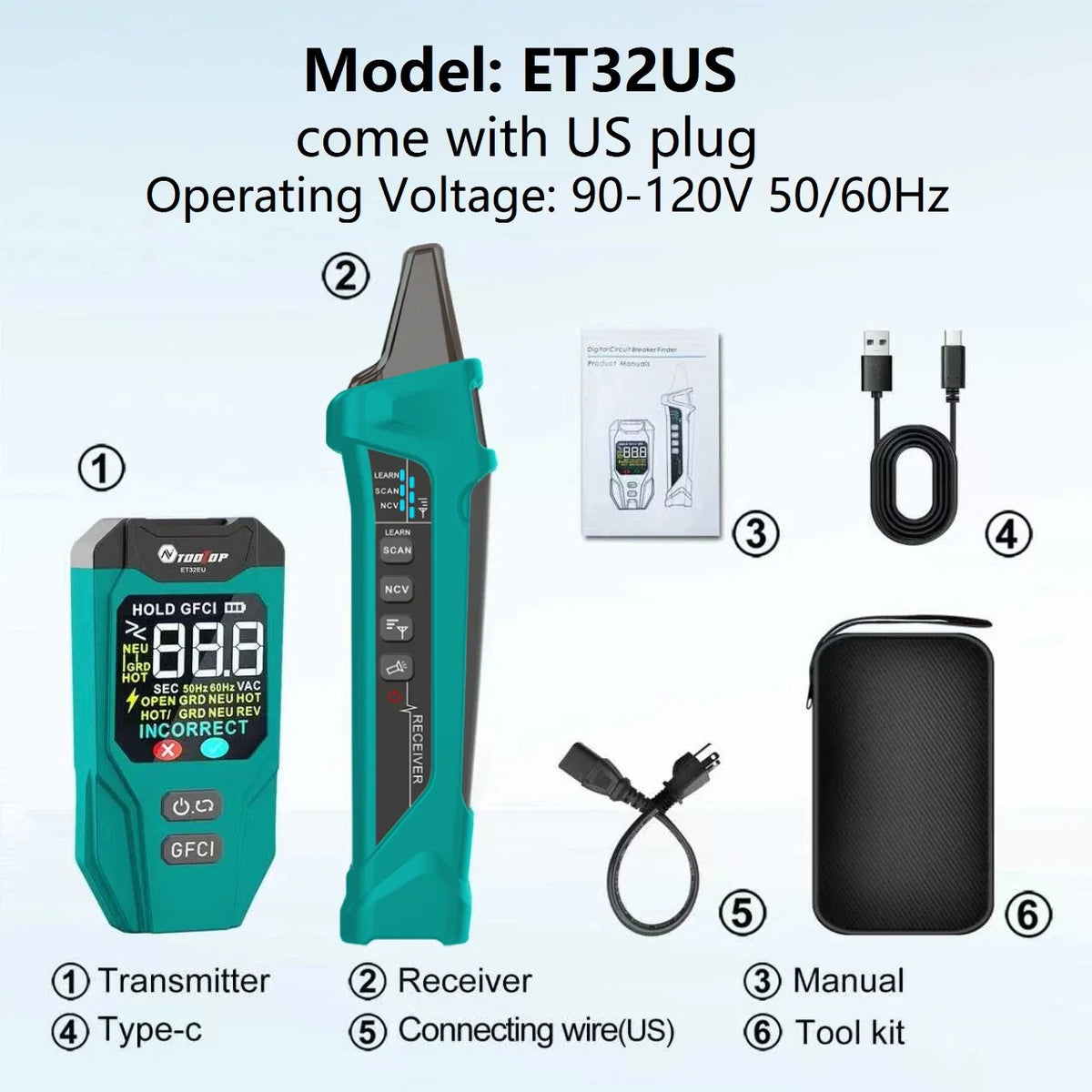

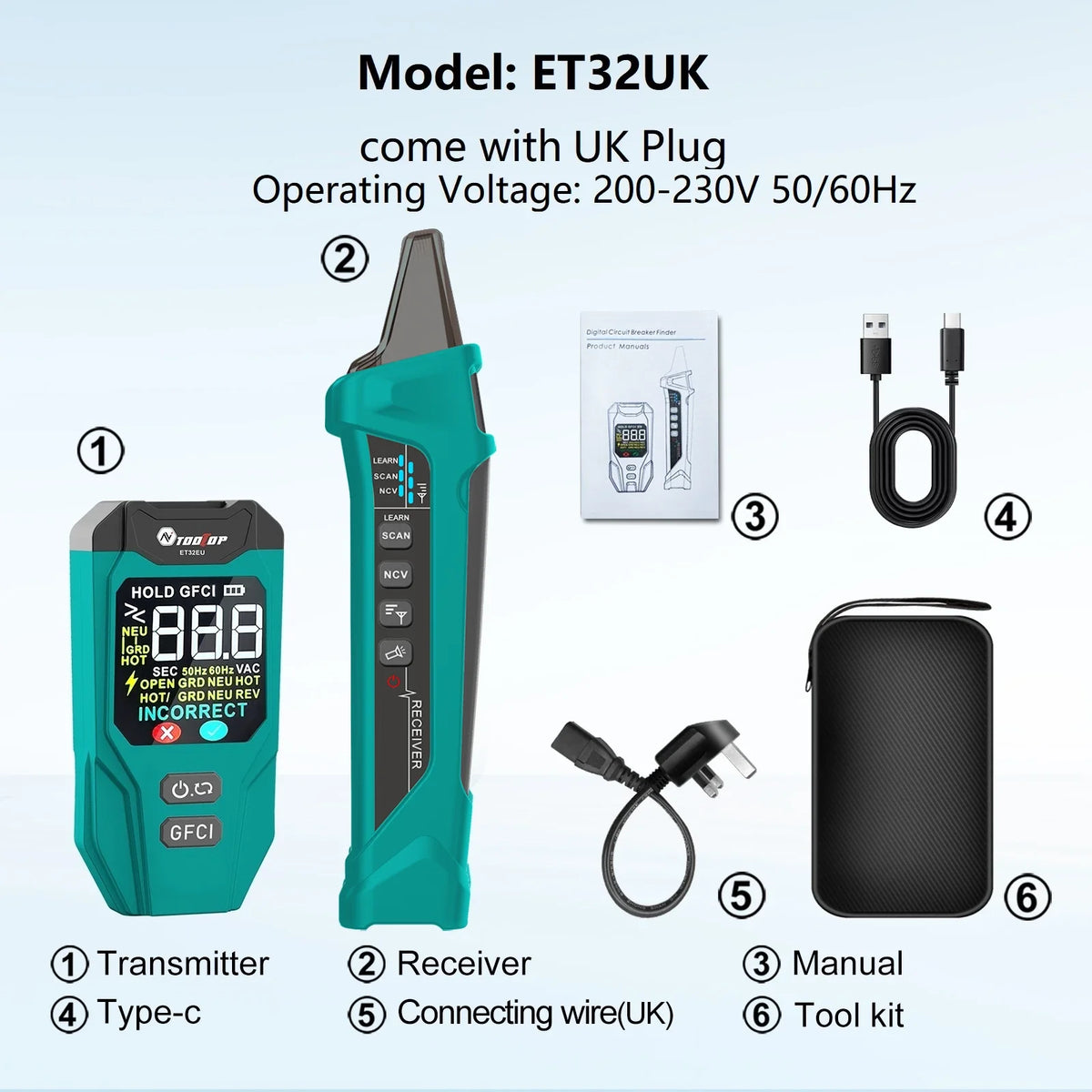

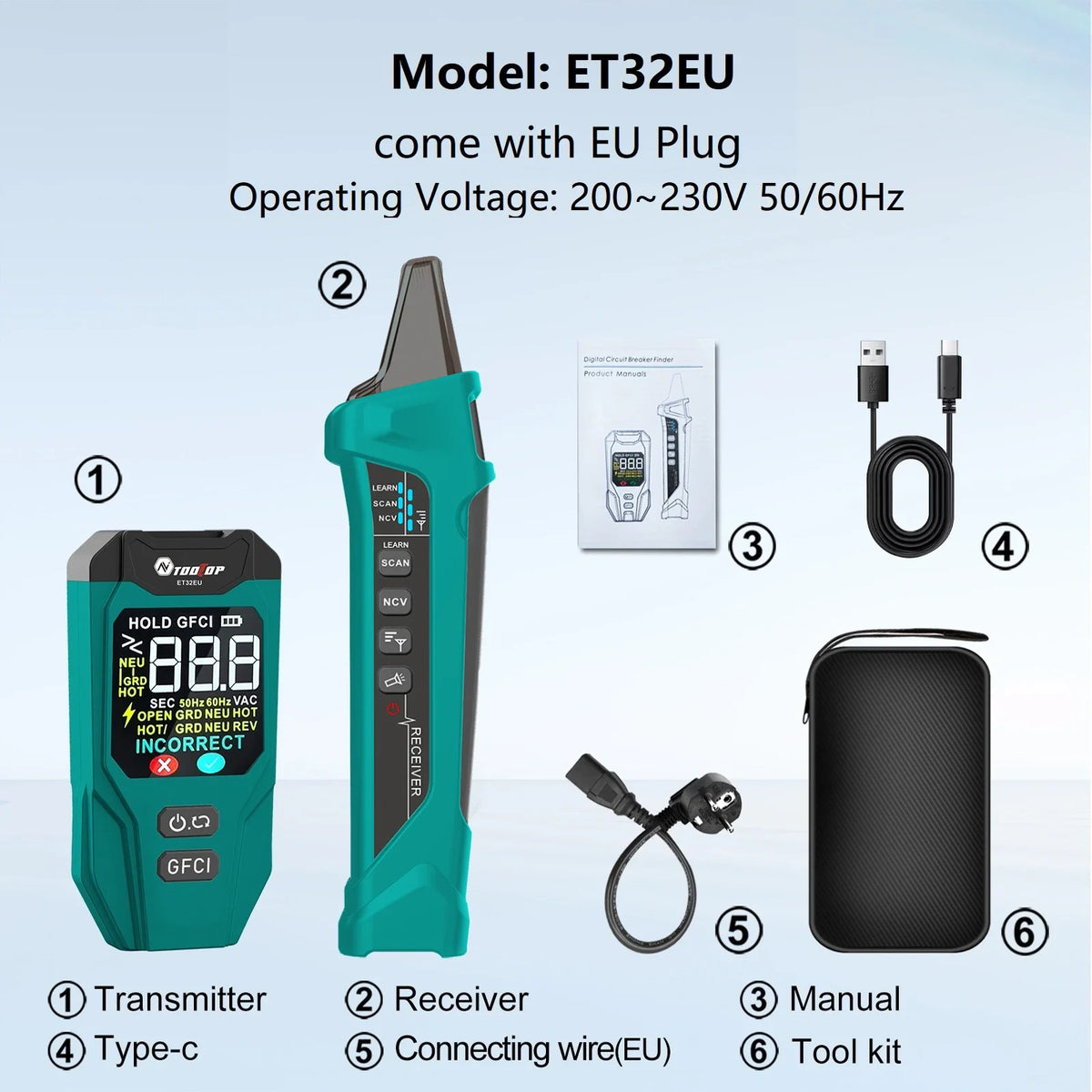

Package List:

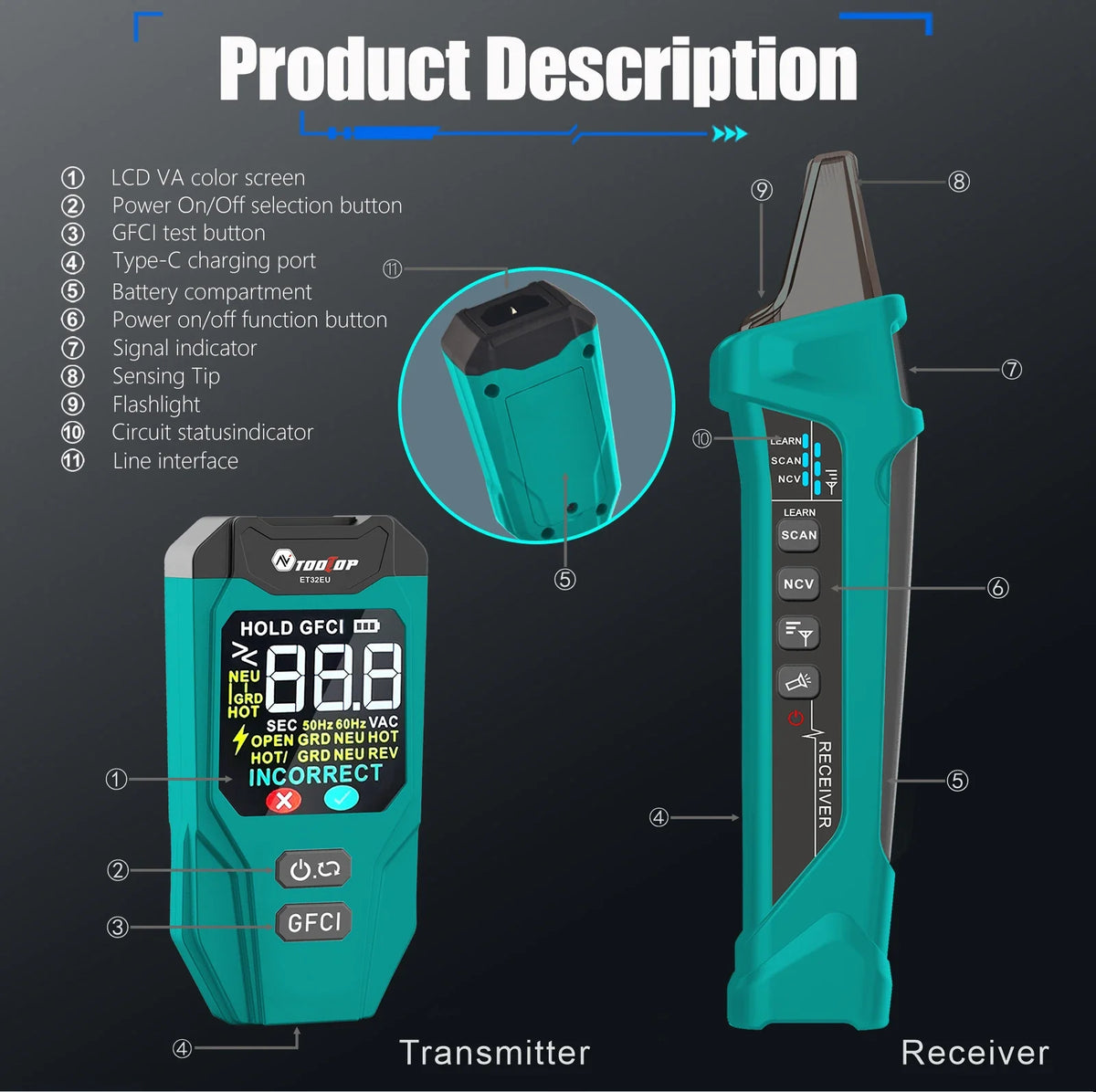

1 x Transmitter

1 x Receiver

1 x Type-C Cable

1 x Connecting wire

1 x English Manual

1 x Tool Bag
